Muir Windlasses

Product Features

  • Rope chain combination gypsy for rope/chain combination or chain only
  • Rope Chain Management System (RCMS)
  • Quick release integrated swivel chain pipe cover
  • Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
  • Heavy duty marine grade, dual direction motor in 12V DC, 24V
  • 316 Stainless steel
  • Independent gypsy and capstan operation (VRC model)
  • Capstan models feature heavy duty knurled finish for increased grip
  • Quick fit adaptor
  • Stainless steel shaft
  • Cone clutch/brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Lubricating grease nipple
  • Clutch release handle
  • Installation/operation booklet

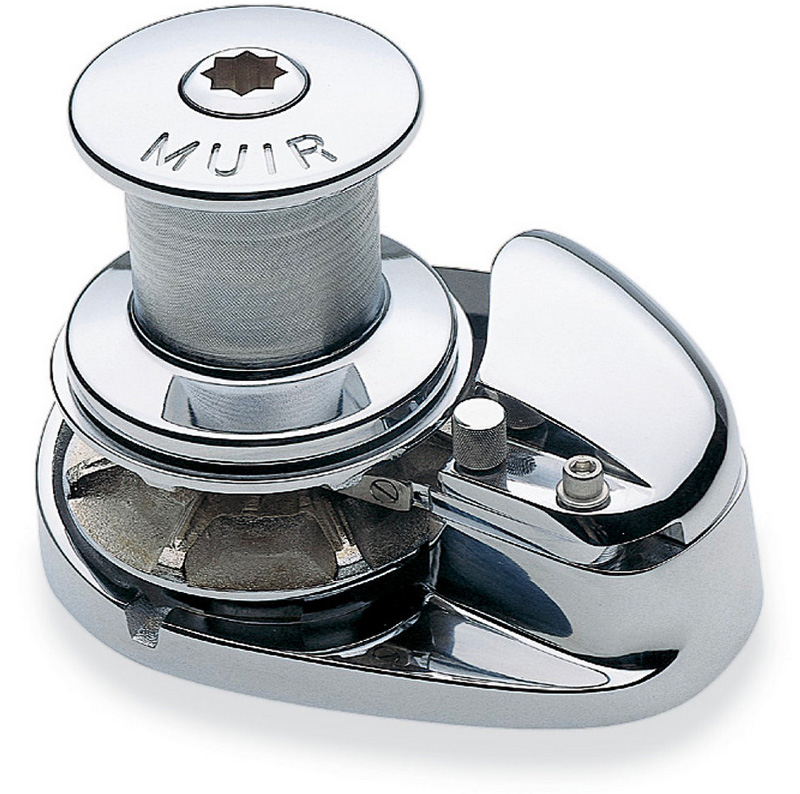

Muir Vertical Storm VR/VRC 850

 The Storm Stainless Steel Range from Muir epitomises the latest in anchor windlass technology.

Muir Storm VR/VRC 600

Designed for vessels up to 25m (85ft), and in low profile and capstan configurations, they offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions.

Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principals of the award-winning Atlantic series with all its features and more.

The range is backed by a three year warranty and supported by an extensive world-wide sales and service network.



Version
VR/VRC 850
Vessel length
8-11m (26-35ft)
Voltage
12/24v
Motor Wattage
600w
Max load
386kg (850 lb)
Work Load
96kg (212 lb)
Amps Work Load
80/50
Max Line Speed
24m/min (77ft/min)
Chain Size
6-8-10mm (1/4" - 5/16" - 3/8")
Rope Size
12-14-16mm (1/2" - 9/16" - 5/8")
Net Weight
DC/HYD VR 15kg (33 lb)
DC/HYD VRC 16.5kg (37 lb)
Finish
316 Stainless Steel
Standard Equipment
RCMS, Footswitch, Handle
Manual Override System
Optional
