Multi-purpose Plug-in Connectors

1 tonne Safe Working Load, Factor of Safety 5:1
3 tonne Safe Working Load, Factor of Safety 5:1

Unobtrusive, with aesthetically good looks and ease of use. Perfect for many applications including use as lift points for tenders and toys, or as rotor hold-downs, and stanchion, awning and guard rail anchor points.

To achieve full SWL 1 and 3 tonne ratings, use only high tensile stainless steel shackles supplied by MMI - please enquire for further information.

Quick attachment and release mechanism, flush fitting and watertight, various options are available including being fitted with auxiliary attachment to enable distribution of part load to the hull.

Custom designed Probe ends include support couplings for awnings/biminis, canopies and anchor points for ladders & stanchions etc

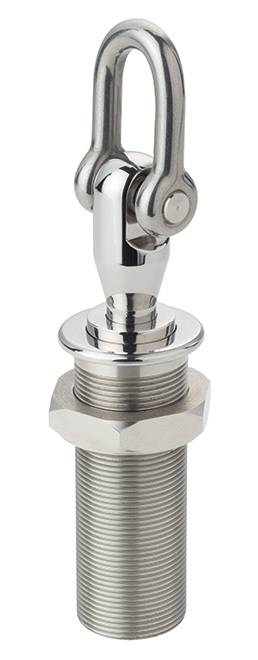

Probe supplied with shackle fitting as standard.



__________________________________________________________________________________________

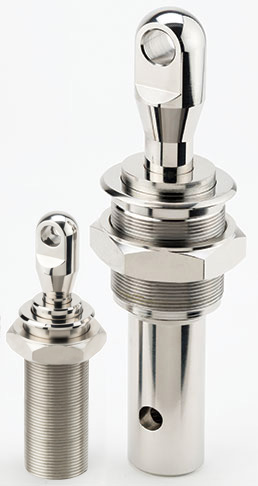

Multi-purpose Plug-in Connector

1 tonne model
Part No. 2165-1T

Weight: 575g approx (including shackle)
Test report available upon request.

3 tonne model
Part No. 2165-3T

Weight: 1.24kg approx (excluding shackle)
Test report available upon request.

Suitable for:
• Support couplings for Awnings,
   Biminis and Canopies
• Anchor points for ladders and
   stanchions
• Lift points for Toys and Tenders

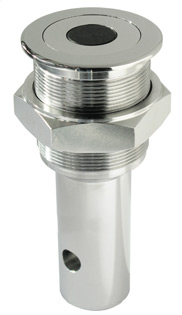

Versions for areas with no under-deck installation access:

1 tonne model
Part No. 2175-1T

3 tonne model
Part No. 2175-3T

Further information is available upon request.

---

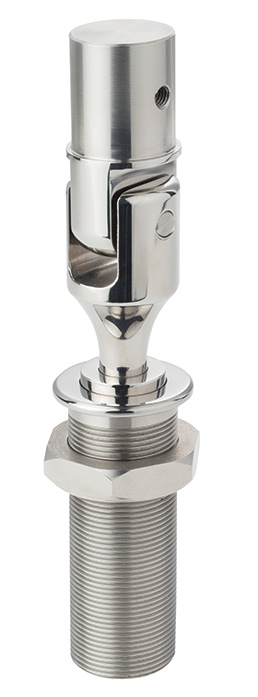

1 Tonne Connector with Jointed Awning Probe

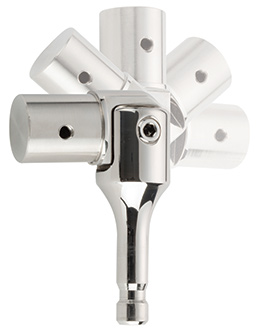

Jointed Probe has smooth 180º range of movement.

1 tonne model
Part No. 2165-1T-JT

1 tonne model - probe only
Part No. 27245-1T-JT

Weight: 670g approx
Test report available upon request.



Suitable for:
• Support couplings for Awnings,
   Biminis and Canopies
• Anchor points for ladders and
   stanchions
• Lift points for Toys and Tenders

---

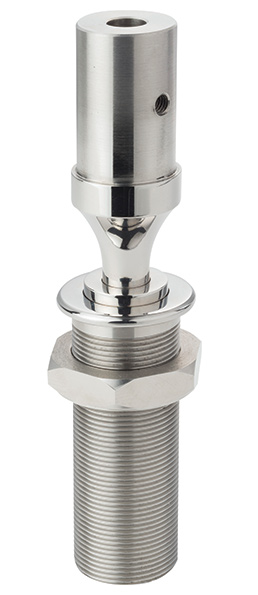

1 Tonne Connector with Fixed Awning probe

1 tonne model
Part No. 2165-1T-ST

1 tonne model - probe only
Part No. 27245-1T-ST

Weight: 585g approx
Test report available upon request.

Suitable for:
• Support couplings for Awnings,
   Biminis and Canopies
• Anchor points for ladders and
   stanchions
• Lift points for Toys and Tenders

---

Multi-purpose Plug-in Connector with auxiliary attachment for additional support.

3 tonne model
Part No. 2181-3T

Weight: 1.7kg approx.

---

Dimensions	2165-1T	2165-3T	2181-3T
Flange diameter	35mm	60mm	60mm
Deck opening	30mm	52mm	52mm
Height of probe centre above deck	40mm	68mm	68mm
Depth below deck	80mm	111mm	141mm

---
